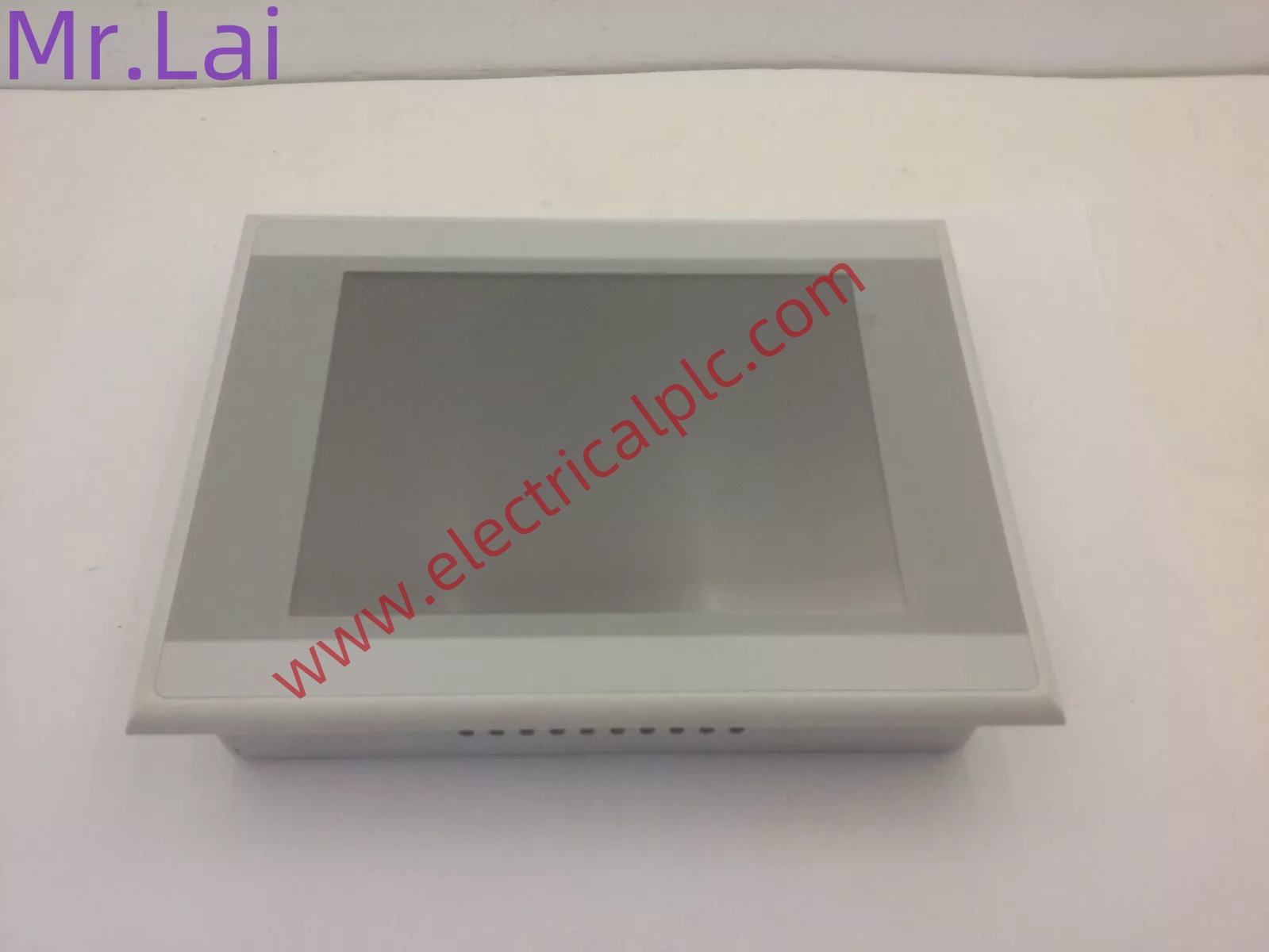

XT-MEM-CF128M-02 XV300 HMI/PLC Multi touch Display Screen

Price:

Brand: EATON MOELLER

model:
XT-MEM-CF128M-02
Type: Multi touch

Interface type: Ethernet, RS-232，RS-485，CAN，USB

Diagonal: 10 inches

Origin: United States
Warranty: 365 days

payment method: T/T

Categories: EATON
Tags:

XT-MEM-CF128M-02 XV300 HMI/PLC Multi touch Display Screen

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Eaton
Product Category:	Panel PCs
Type:	Multi-Touch
Display Type:	LED
Installed RAM:	512 MB
Interface Type:	Ethernet, RS-232, RS-485, CAN, USB
Diagonal:	10 in
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 50 C
Brand:	Eaton Electrical
Product Type:	Panel PCs
Series:	XV300
	1
Subcategory:	Computing
Unit Weight:	2.568 lbs

Reference: XT-MEM-CF128M-02

Code: 179659

Catalog Number: Y7-179659

Manufacturer: EATON-MOELLER

Description:

XT-MEM-CF128M-02 Control panel, 24 V DC, 10 Inches PCT-Display, 1024×600 pixels, 1xEthernet, 1xRS232, 1xRS485, 1xCAN,
1xSD card slot, PLC function can be fitted by user

XT-MEM-CF128M-02

Multi-Touch Display, XV-303, Product range: XV300 10.1z, Function: HMI-PLC (PLC retrofitted by user), Control panel, Common
features of the model series: Ethernet interface, CAN, USB device, USB Host, RS232, RS485, Slot for SD card, Operating System Windows Embedded
Compact 7 pro, Integrated Runtime visualization software license, Display – Type: Color display, TFT, anti-glare, Touch-technology:
Capacitive multi-touch technology (PCT), Number of colors: 16777216 (Color depth 24 bit), Resolution: WSVGA, 1024 x 600 Pixel,
Portrait format: yes, Screen diagonal: 10.1, widescreen Inch, Plastic enclosure and glass panel in plastic frame , Operating system:
Windows Embedded Compact 7 Pro, PLC-license: Can be fitted by user with article no. 181585 LIC-PLC-A, License certificates for
onboard interfaces: Not required, built-in interfaces: 1 x Ethernet 10/100 Mbps, 1 x RS232, 1 x RS485, 1 x USB host 2.0, 1 x USB device,
1 x CANopen®/easyNet, Front type: Anti-glare tempered glass in plastic bezel, Utilization: Flush mounting, Slots: for SD card:
1, Memory card automation: Optionally with SD card -> article no. 181638, Pluggable communication cards (optional): no,
Touch sensor: Multi-touch touch panel, Heat dissipation: 18 W, Degree of protection (IEC/EN 60529, EN50178 , VBG 4):
IP65 (in the front as per EN 60529-1), IP20 (on rear as per EN 60529-1), NEMA 4X, NEMA12 (as per NEMA 250-2003)

XT-MEM-CF128M-02 Technical Manual

XT-MEM-CF128M-02 instructions

XT-MEM-CF128M-02 PDF

XT-MEM-CF128M-02 Weight: 2.5KG

XT-MEM-CF128M-02 Size: 25 * 30 * 30cm
